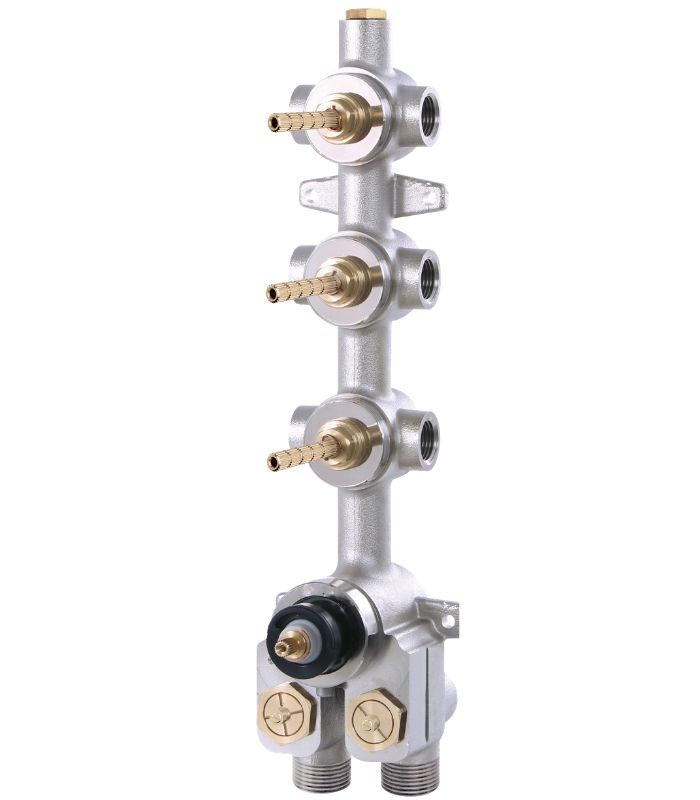

Aquabrass TURBO T12003 High Flow Thermostatic Valve with 3 Shut-Off Valves

Multiple shower controls require a valve that can accommodate different plumbing arrangements while maintaining dependable temperature management. The Aquabrass TURBO T12003 is a thermostatic valve built around a high-flow Vernet thermostat cartridge and a three shut-off valve configuration. It provides several connection options for shower installations where flexible water routing and service access are important.

The high-flow Vernet thermostat cartridge is specified for a flow rate of 12 GPM at 45 PSI and 15 GPM at 75 PSI. These figures provide a useful reference when planning the valve as part of a complete shower system. Water delivery will depend on the overall plumbing arrangement and the other components used with the installation.

Connection flexibility is provided through universal inlet connections that accommodate both 1/2-inch and 3/4-inch plumbing. The valve has built-in female threads for 1/2-inch connections and male threads for 3/4-inch connections. This arrangement allows installers to work with different connection requirements without limiting the valve to a single inlet size. All connection details should be verified against the planned plumbing system before installation.

Service features are integrated into the assembly. Reversible service check valves with filters help form part of the valve’s service and water-management arrangement, while an improved stop mechanism adds to the specified functionality. The reversible design gives installers additional flexibility when configuring the assembly and planning access for servicing.

Three shut-off valves provide multiple outlet control points. Their connections can be arranged to the right, left, or on both sides at the same time, allowing the layout to be adapted to the requirements of the shower system. This configuration is particularly useful when several water outlets or control points need to be accommodated within a coordinated valve arrangement.

A removable NPT plug is positioned at the top of the valve. The opening provides an option to connect an additional #1206 shut-off valve or an independent #61934 diverter with stop when the shower design calls for one of these components. These options allow the T12003 to be incorporated into different system layouts while retaining the specified shut-off configuration.

For installation planning, the Aquabrass T12003 should be evaluated alongside the complete shower valve, diverter, outlet, and control arrangement. Its universal inlet connections, three shut-off outlets, service check valves, and top NPT opening give installers several configuration possibilities. Confirm the required connections and compatible components before installation to ensure the valve suits the intended shower plumbing layout for each project.
