$1,794.10
Price range: $1,113.00 through $1,504.30
Riobel Square Rail Rain and Cascade Shower System
WARRANTY FILE
VIDEOS
$2,820.00
$1,974.00
A Chrome rain-and-cascade shower kit with square hand-shower rail, two-spray hand shower and included valve rough-in.
Prices in CAD. Estimated delivery: 5-10 business days.

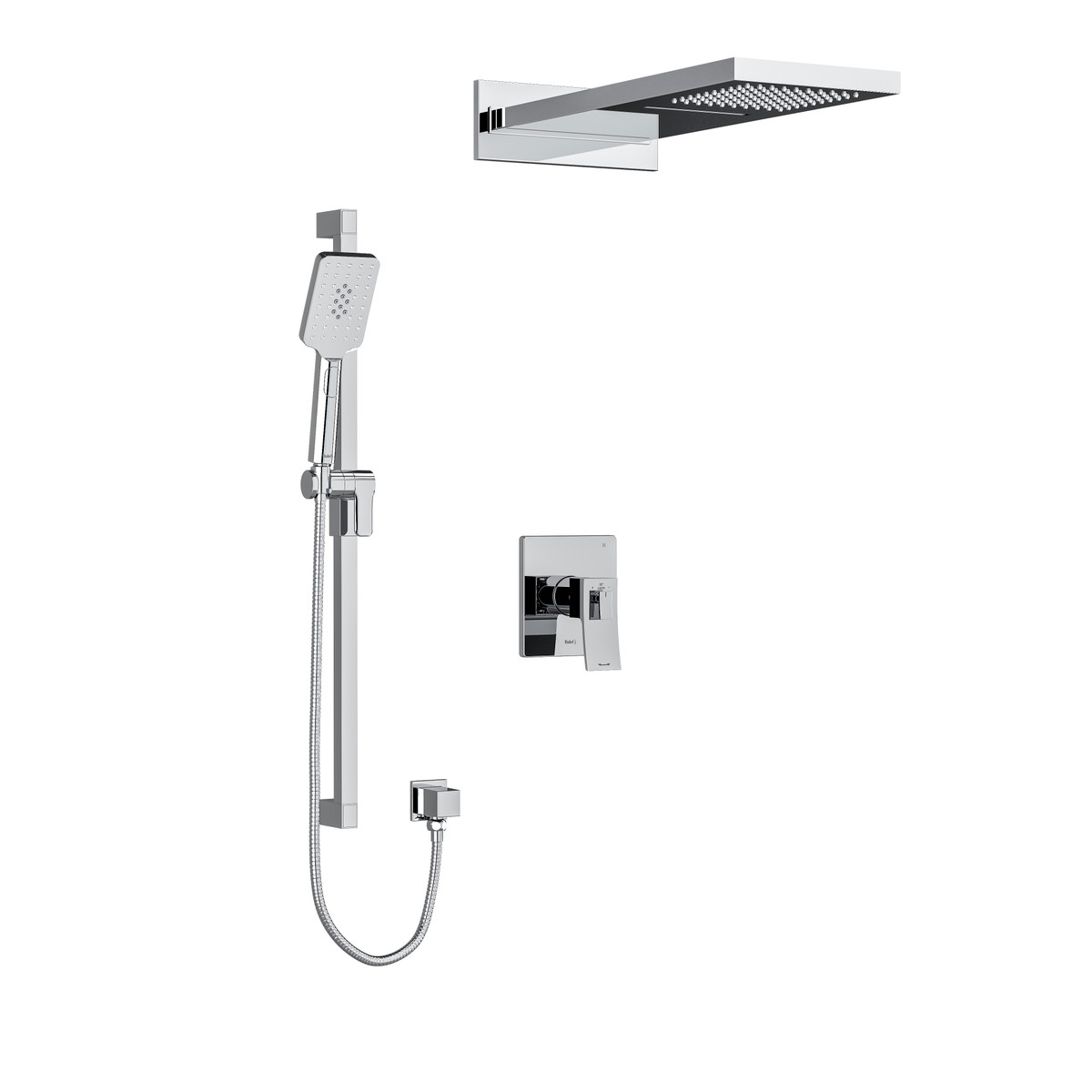

Riobel Square Rail Rain and Cascade Shower System
Pair a square control and slide rail with a wall-mounted rain-and-cascade head. This Chrome kit includes the valve rough-in in the chosen connection style.
Included Components: TZOTQ45 valve trim, matching R45-EX or R45-SPEX valve rough-in, 4665 hand shower rail and hose, 404 rain-and-cascade showerhead with its special rough, and 774 supply elbow.
Features
- Type T/P thermostatic and pressure-balance coaxial control.
- Two-spray square hand shower on a square Easy-Glide slide rail.
- Rain and cascade spray outlets in a wall-mounted head.
- Selected valve rough-in and the overhead head’s special rough included.
Specifications
| System | Type T/P three-way thermostatic and pressure-balance coaxial |
|---|---|
| Collection | Riobel Cross Collection |
| Valve trim | TZOTQ45; nominal 5-1/2 in width and 6-1/8 in height |
| Valve rated flow | 6.0 US GPM at 60 PSI |
| Valve rough-in | R45-EX: 1/2 in Expansion PEX inlet and three outlets; R45-SPEX: 1/2 in PEX inlet and three outlets |
| Hand shower rail | 4665 with 4365 two-spray hand shower; 29-5/8 in overall height |
| Hand shower rated flow | 2.0 US GPM at 60 PSI for base 4665 |
| Showerhead | 404 rain and cascade; 22-7/8 in projection and 10-5/8 in width |
| Showerhead rated flow | 2.5 US GPM at 60 PSI |
| Supply elbow | 774; adjustable depth, 1/2 in female NPT inlet and 1/2 in male outlet |
| Valve positions | Off, 1, 1+2, 2, 2+3, 3; not all three outlets simultaneously |
| Hose | 59 in double-interlock flexible hose with swivel and two check valves |
Installation Planning
Plan two 1/2 in female NPT inlet connections for the 404 head. Its special rough must be coordinated with valve rough-in installation. Choose PEX or Expansion PEX before rough-in work.
Separate component flow ratings are not a total system flow rating. Available shared valve positions do not operate all three outlets at once.
Explore multi-function shower systems. Review the manufacturer warranty and AquaLuxe returns policy.
| Color | Chrome |
|---|---|
| Rough-in Connection | 1/2 in Expansion PEX, 1/2 in PEX |
