Riobel Paradox Pressure Balance Handshower System
WARRANTY FILE
VIDEOS
Price range: $1,035.00 through $1,467.00
Riobel Paradox Pressure Balance Handshower System. Coordinated shower components supplied as one manufacturer kit. Refer to the official specification sheet for the components in your selected configuration. Rough-in valve included in this kit.
Prices in CAD. Estimated delivery: 5–10 business days.

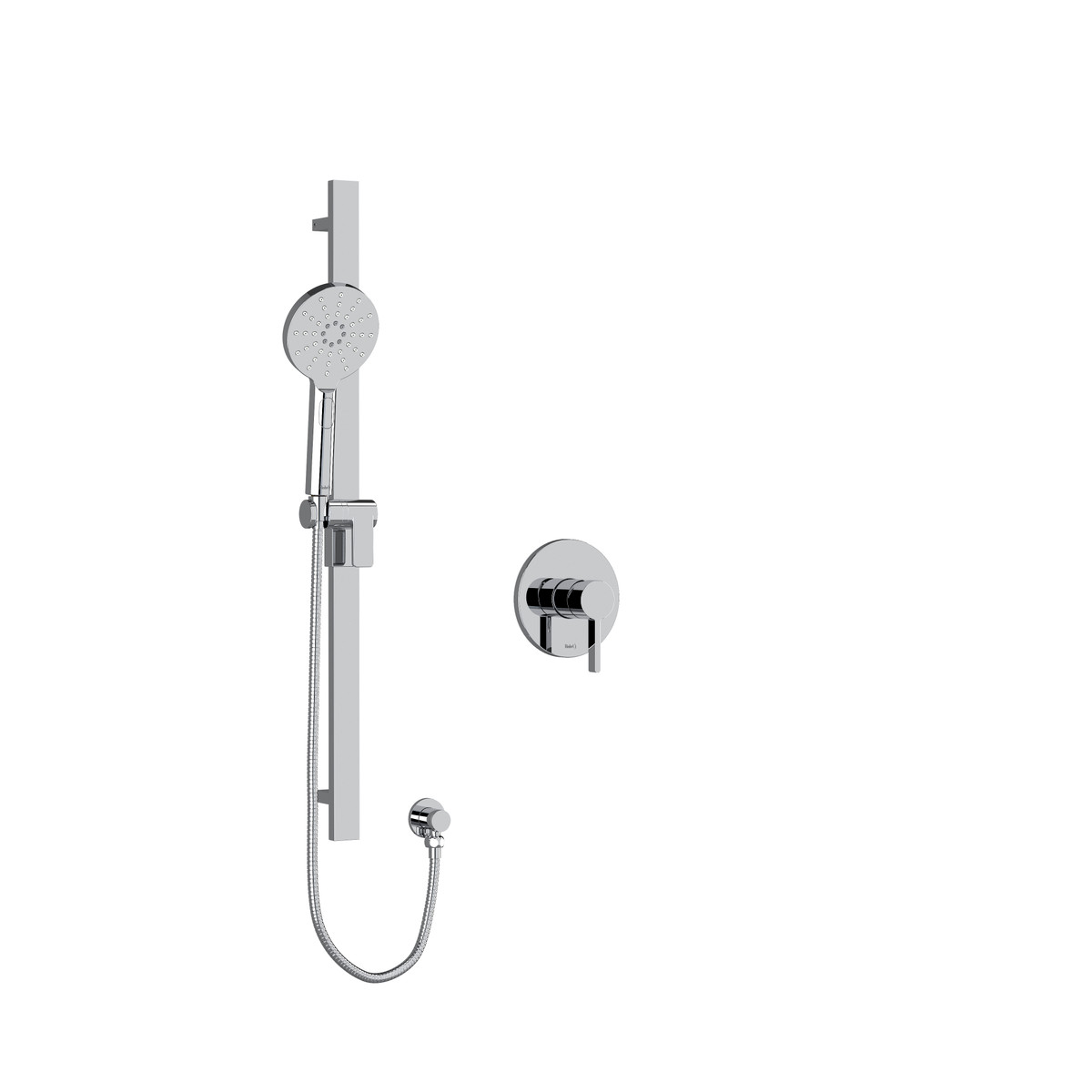

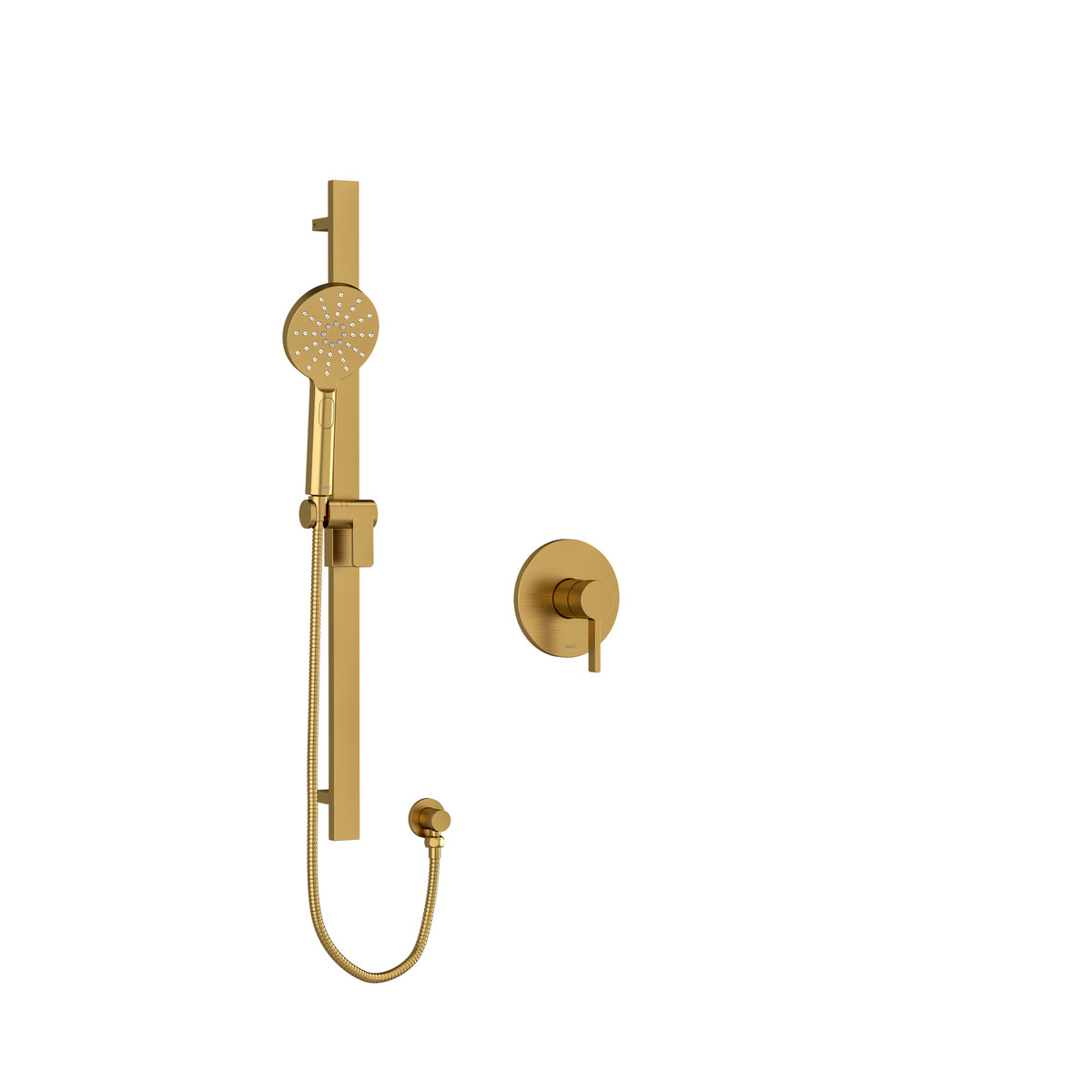

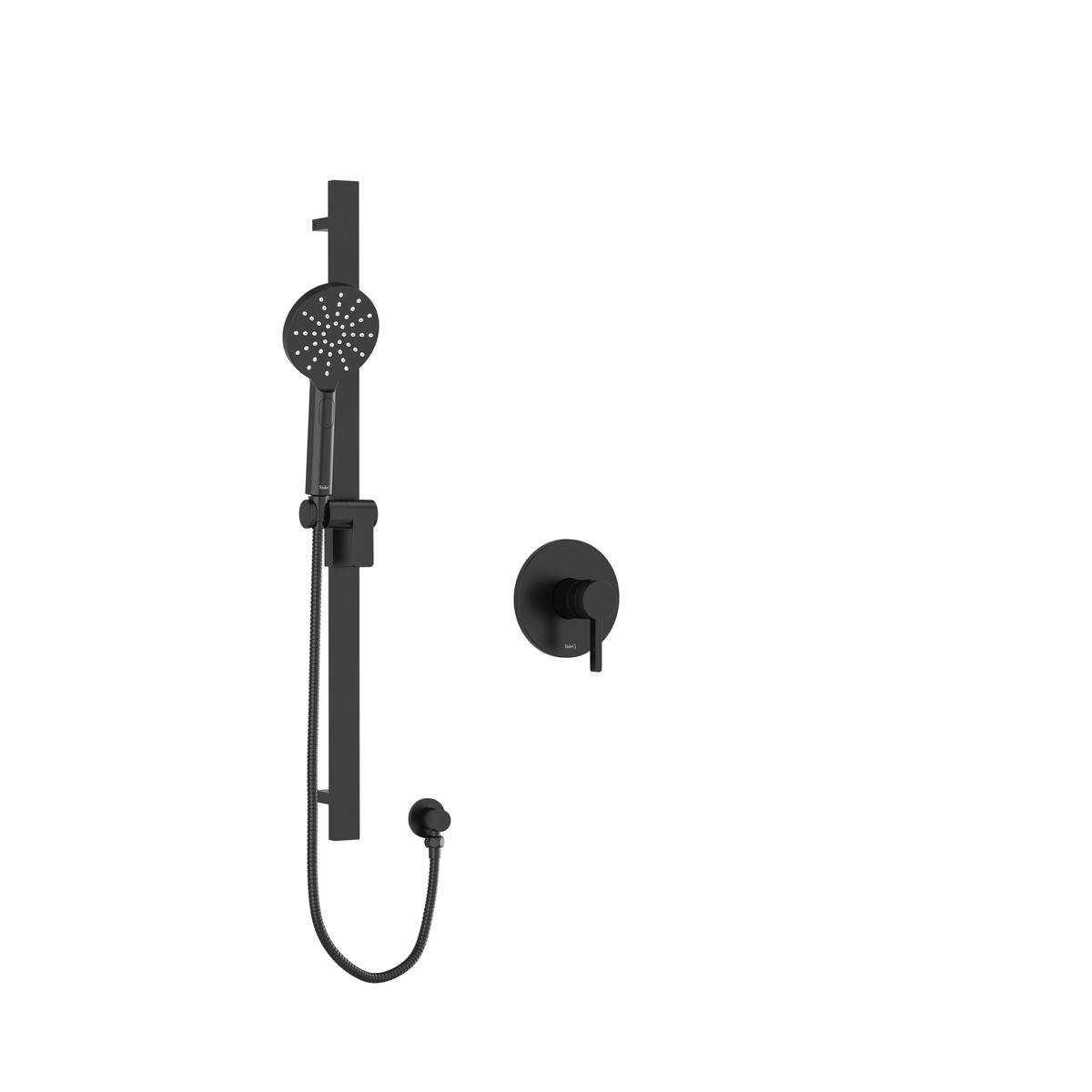

The Riobel Paradox pressure-balance handshower system combines a round control plate, lever handle and rectangular slide bar. The kit includes the control trim, R51-family rough-in, handshower rail with flexible hose and wall supply elbow. Choose the finish and rough-in connection for your installation. A fixed overhead showerhead is not included.
Installation Planning
Plan the control and rail position before closing the wall. Set the included rough-in against the actual finished-wall thickness using the template and guide supplied with the selected valve; the decorative plate size is not a wall-cutout size. Flush the water supplies before connecting the valve. Confirm the rail fixing centres, hose reach and component connections on site before drilling. The rail dimensions use the drawings’ printed inch callouts and describe the illustrated assembly, not fixing-hole spacing or packaged dimensions. The linked pressure-balance manual covers several bath and shower layouts; use the instructions for this handshower configuration and leave the template in place until the wall work is complete.
Flow and Configuration
The valve and handshower are separate flow ratings. A valve-capacity figure does not describe the water delivered by the handshower. The linked standard rail sheet lists 2.0 GPM (7.6 L/min) at 60 PSI. Lower-flow or WaterSense references in that sheet apply only to the specifically identified component variants; no such certification is asserted for every kit option.
Compare our shower systems for other control types and component layouts.
| Color | Black, Brushed Gold, Chrome |
|---|---|
| Connection | NPT, Expansion PEX, PEX |
Brand
RIOBEL
Only logged in customers who have purchased this product may leave a review.
Shipping & Delivery
AquaLuxe ships across Canada. Free shipping is available on eligible orders of CAD $150 or more after discounts, where offered for your delivery address. Size, weight and destination restrictions may apply. Eligibility and any shipping charges are confirmed at checkout.
Processing and delivery
Estimated delivery: 5–10 business days after payment confirmation, including order processing and shipping. Business days exclude weekends and statutory holidays. We will contact you if delivery conditions change.
Tracking and receiving your order
Tracking information is emailed when your order ships. Inspect your delivery on arrival and contact us promptly if anything is missing or damaged.
| Control Plate Diameter | 6 in |
|---|---|
| Slide Bar Drawing Height | 27-1/2 in |
| Shown Handshower Assembly Height | 31-1/2 in |
| Slide Bar Projection - Drawing | 2-1/2 in |
| Flexible Hose Length | 150 cm (59 in) |
| Included Rough-In Connection | NPT, Expansion PEX or PEX, as selected |
Included Components
- TPXTM51 Type P pressure-balance control trim
- R51-family rough-in valve; connection: NPT, Expansion PEX or PEX, as selected
- 4844 handshower rail/set with 150 cm (59 in) flexible hose
- 710 wall supply elbow
Operation
- Ceramic cartridge and balancing spool with check valves
- Flow and temperature control
- 2 jets; scale-resistant handshower
- Easy-Glide left slider
- Flexible hose with swivel and two check valves
- Rough-in supplied as part of this manufacturer kit; a second rough-in is not listed as an extra requirement
Standard handshower rail sheet: 2.0 GPM (7.6 L/min) at 60 PSI. This is the rail rating, not valve capacity; variant-specific lower-flow and WaterSense claims remain limited to their named component models.
