Riobel Authentica Shower Kit 1244 Trim

SKU: TKIT1244AU

Price range: $1,242.00 through $1,678.00
Price range: $869.40 through $1,174.60

Riobel Authentica Shower Kit 1244 Trim. Coordinated shower components supplied as one manufacturer kit. Refer to the official specification sheet for the components in your selected configuration. Required rough-in valve is sold separately; add the compatible valve shown under Required Items.

Prices in CAD. Estimated delivery: 5–10 business days.

Required Item for Installation

Delivery: Estimated 5–10 business days after payment, subject to availability and destination. Shipping details · Returns policy

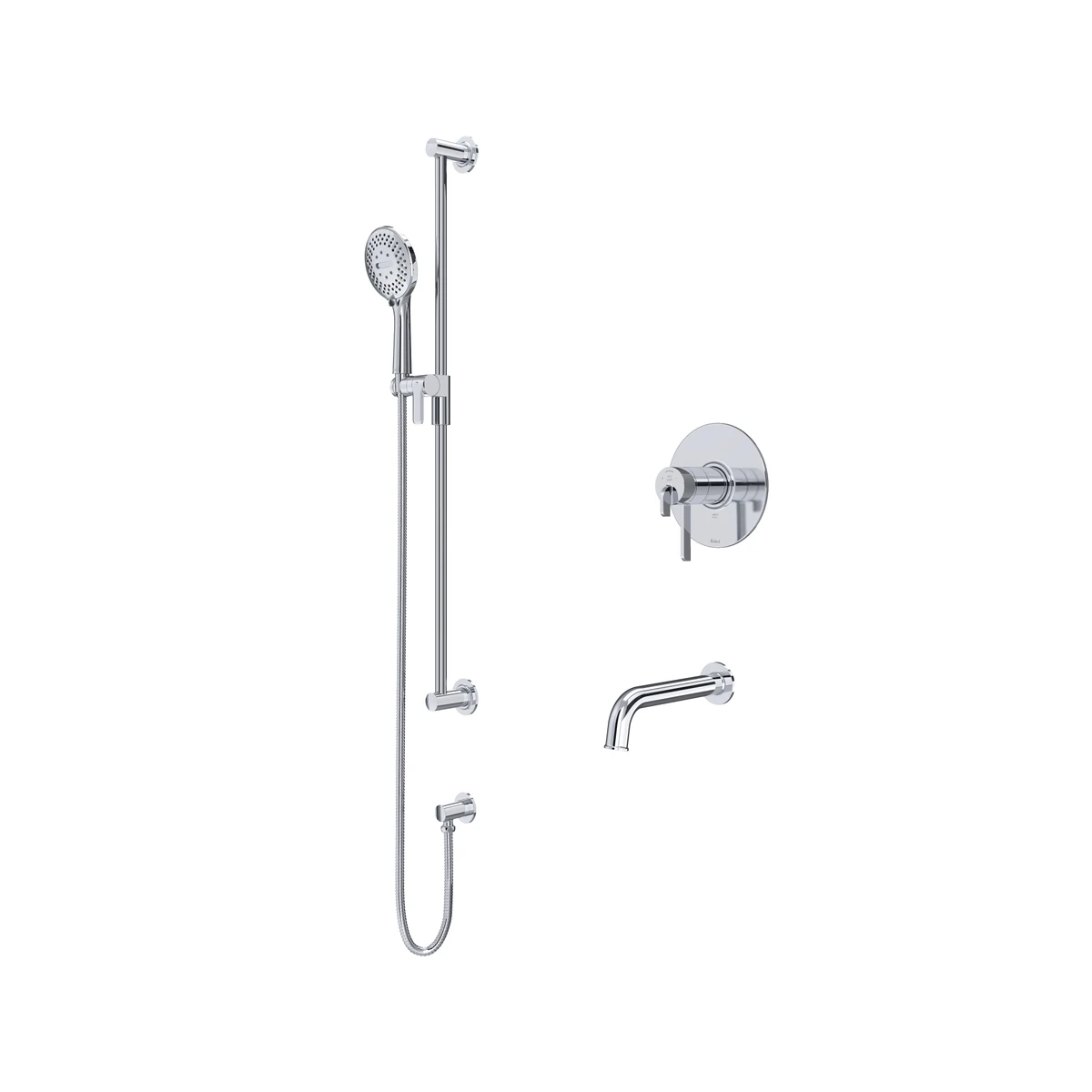

The Riobel Authentica Shower Kit 1244 Trim pairs a five-function handshower on a sliding rail with an arched wall-mount tub spout. Its TAU44 coaxial control combines thermostatic and pressure-balance technologies. The compatible R23 rough-in is sold separately.

Explore more shower systems at AquaLuxe.

Color

Brand

RIOBEL

Riobel

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Shipping & Delivery

AquaLuxe ships across Canada. Free shipping is available on eligible orders of CAD $150 or more after discounts, where offered for your delivery address. Size, weight and destination restrictions may apply. Eligibility and any shipping charges are confirmed at checkout.

Processing and delivery

Estimated delivery: 5–10 business days after payment confirmation, including order processing and shipping. Business days exclude weekends and statutory holidays. We will contact you if delivery conditions change.

Tracking and receiving your order

Tracking information is emailed when your order ships. Inspect your delivery on arrival and contact us promptly if anything is missing or damaged.

Read the full Shipping Policy  |  Contact AquaLuxe

Control plate diameter6-3/4 in (printed drawing dimension)
4871 rail overall height37-3/8 in (printed drawing dimension)
4871 slide-bar diameter3/4 in (19 mm)
4375 handshower face diameter2-3/8 in (60 mm)
4871 rail projection3 in (75 mm)
4871 hose length59 in (150 cm)
742 outlet projection2-1/4 in (57 mm)
742 outlet flange diameter2 in (50 mm)
742 outlet connections1/2 in slip-fit inlet; 1/2 in male G outlet
AU80 overall projection8-3/4 in (printed inch dimension; unit-pair discrepancy held)
AU80 outlet projection8-1/8 in (206 mm)
AU80 drawing height3-5/8 in (printed inch dimension; unit-pair discrepancy held)
AU80 inlet1/2 in copper slip-fit
Required valve rough-inR23 family; sold separately; see Required Item for Installation

Dimensions describe individual components, not a combined installation or shipping carton. Printed inch dimensions are retained where the drawing uses inconsistent unit pairs. Rail dimensions are not drilling centres. Verify finished-wall clearances, selected arm, component connections and the exact rough-in instructions before installation.

Included Components

  • TAU44 Type T/P coaxial control trim
  • 4871 rail with 4375 five-function handshower and 59-inch hose
  • 742 handshower outlet
  • AU80 wall-mount tub spout

Control and Spray Functions

The current TAU44 sheet specifies two dedicated functions and one shared function. This is the exact Authentica trim specification.

Flow and Compatibility

The 4871/4375 handshower is rated 1.8 GPM (6.7 LPM) at 60 PSI. The TAU44 control capacity is 6.3 GPM (24 LPM) at 60 PSI, not the handshower or tub-spout discharge rate.

Installation Planning

This is a trim package. The R23 valve rough-in is required and sold separately. Use the existing local Required Item for Installation link, then match its connection to the plumbing. Retain the exact trim SKU and confirm rough-in orientation and finished-wall depth with the rough-in documentation. Confirm actual package contents and exact finish/configuration with the manufacturer before rough-in. Use component-specific installation instructions; rail drawing heights do not establish fixing centres. No universal wall cutout, rough-in depth, accessibility claim or shipping measurements are inferred.
